  FM Transmitter >>
  AC-2110

Digidockホームページ








AC-2110 is a device for playing your favorite MP3 format music through FM audio channel in your car. Just adjust your car radio into proper FM channel which should be the same as AC-2110 frequency and put music transmission wire into earphone jack of portable music device and enjoy the MP3 music from the car audio system!

  Tech Spec.....
  Specifications

Input Voltage Cigar Lighter DC+12V~+16V
Rating Current 30mA
Idle Current No Current Consumed
Product Weight 65g
Dimension 144mm x 40mm x 20mm
Frequency 88.3MHz.88.7MHz.88.9MHz
Output Voltage DC +5V ; 500mA
Safety Fuse Max. 0.5A, 250V fuse

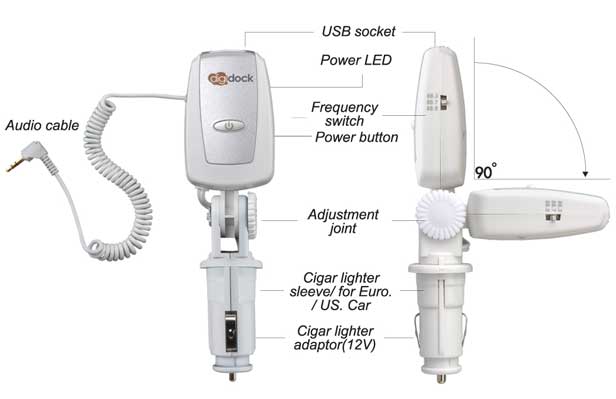

  Features

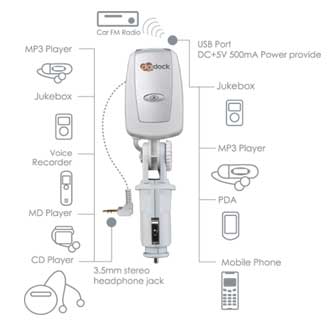

  • Wirelessly transmitting voice and music signal to the FM stereo system.

  • Compatible with any audio device that has a standard 3.5mm headphone plug.

  • Power button for avoiding unnecessary power consumption, and the power LED indicator for power status.

  • 3 bands (88.3, 88.7,88.9MHz) selection for better audio quality.

  • Using car DC power (12V). Battery is not required.

  • Additional USB +5V power source provided (not available for I Pod 3G / Photo / mini / Shuffle charging )

  • Easy installation and simple use.

  • Flexible adjustment joint for using in cars.

  • Fuse function for safety use.

  • Suitable length of audio filament.
